BETAFPV Meteor65 Pro II Developer Kit – DIY Whoop Kit

BETAFPV Meteor65 Pro II Developer Kit – DIY Whoop Kit

Build your own 1S analogue FPV whoop with the BETAFPV Meteor65 Pro II Developer Kit. This DIY kit includes the main electronics, four motors, two frames, spare propellers and the hardware needed for assembly. The Matrix 1S 5IN1 II flight controller is pre-flashed and tuned by BETAFPV.

This is a parts kit, not a ready-built quadcopter. It has an onboard ELRS 2.4GHz receiver and an analogue video system. You will also need a compatible ELRS radio transmitter, analogue FPV goggles, a 1S BT2.0 battery and a suitable charger. These are sold separately.

The Meteor65 Pro II Developer Kit gives you the parts to assemble BETAFPV’s 1S analogue whoop yourself. Its Matrix 1S 5IN1 II board combines the flight controller, ESC, ELRS receiver and analogue video transmitter. The wide-angle Air Camera provides a 16:9 image for compatible analogue FPV goggles.

The kit is aimed at pilots who enjoy building, and can also be used for training or teaching. Assembly is required; please follow the included user manual. A battery, radio transmitter, FPV goggles and charger are not included.

Product Highlights

• DIY kit for building a Meteor65 Pro II 1S brushless whoop
• 70mm wheelbase Meteor65 Pro II frame
• Matrix 1S 5IN1 II flight controller with onboard ELRS 2.4GHz receiver
• Integrated 25–400mW analogue video transmitter
• 16:9 Air Camera with a 173° field of view
• Four Racing 0802 motors and eight GF 1409 three-blade propellers
• Two frames included, giving you a spare for a future rebuild
• Flight controller supplied pre-flashed and tuned by BETAFPV

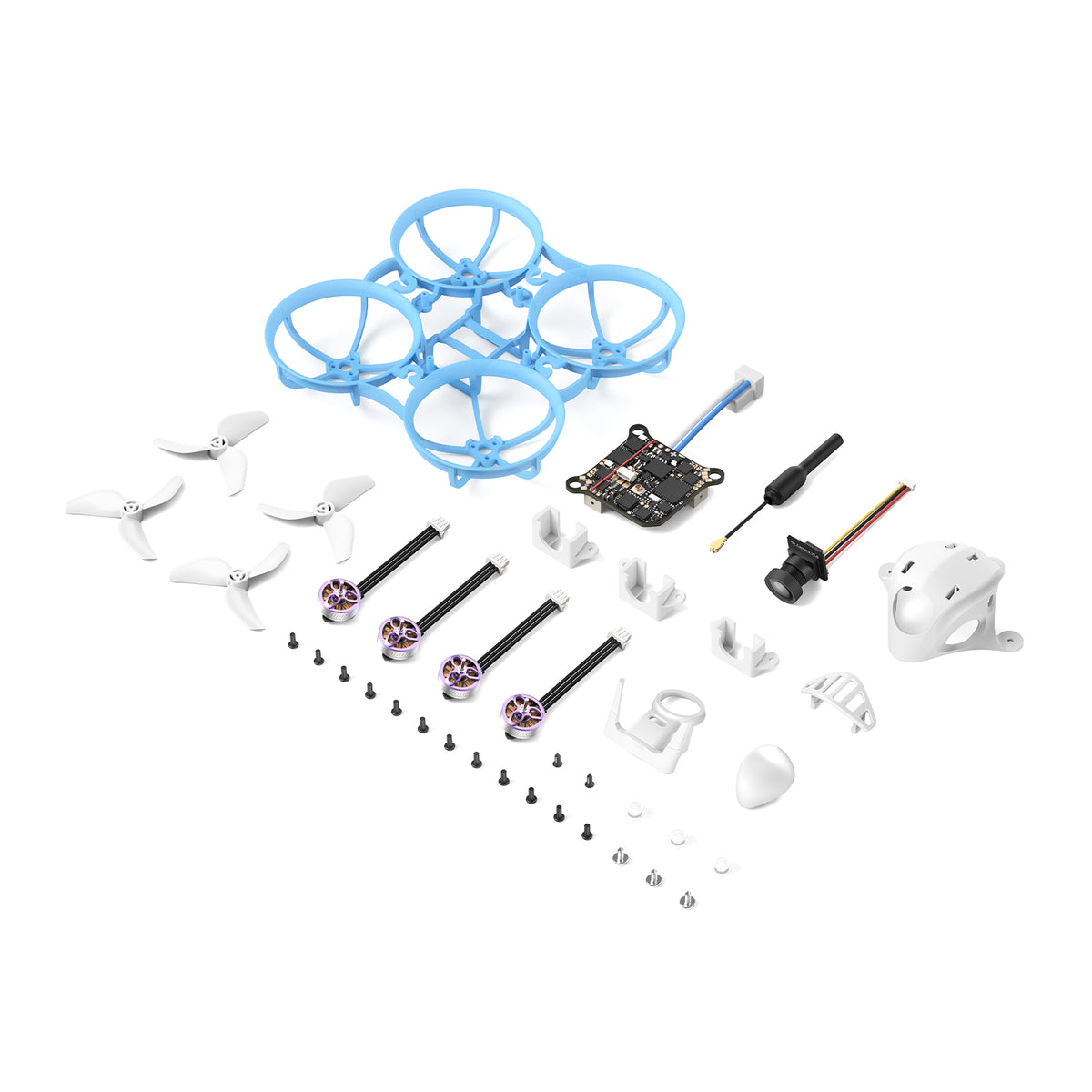

In the box

• 2 × Meteor65 Pro II brushless whoop frames
• 1 × Canopy for Micro Camera 2022
• 3 × Camera brackets
• 3 × Canopy accessories
• 4 × Racing 0802 motors
• 1 × Matrix 1S 5IN1 II flight controller
• 1 × 16:9 Air Camera
• 8 × GF 1409 three-blade propellers
• 1 × 5.8GHz antenna
• 5 × Shock-absorbing balls
• 5 × M1.4 × 4 countersunk tapping screws
• 5 × M1.4 × 4 flat-head tapping screws
• 18 × M1.4 × 3 screws
• 1 × USB-C adapter
• 1 × 4-pin adapter cable
• 1 × Cross-head screwdriver
• 1 × User manual

What You’ll Need

• Compatible ELRS 2.4GHz radio transmitter
• Analogue FPV goggles or receiver
• 1S battery with a BT2.0 connector
• Suitable 1S battery charger

BETAFPV recommends LAVA II 1S 480mAh or 580mAh batteries. The manufacturer advises against using the 680mAh version, as its length may cause fitting issues.
