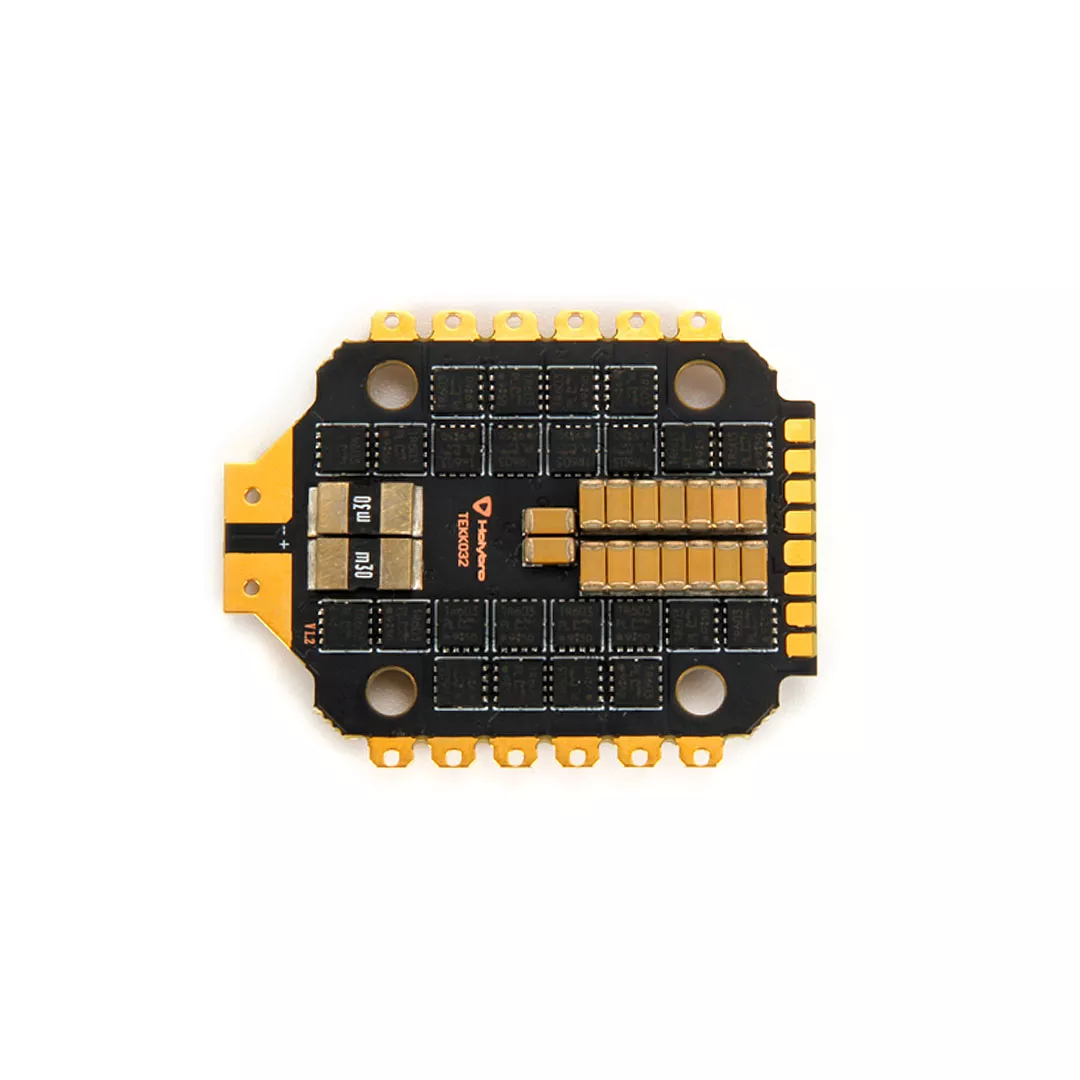

Holybro Tekko32 F4 4in1 mini 45A ESC v1.2

This is the Holybro Tekko32 F4 4in1 mini ESC, with 20 x 20 mm mounting holes.

An ESC perfect for your medium sized FPV quadcopter The ESC is natively runs the the BLHELi32 firmware and max PWM output to 96K.

Product Information

• F4 MCU with BLHELI32 firmware
• Maximum PWM output upto 96K (16k to 96k)
• Amperage meter scale ratio has been adjusted to 90.
• PWM input, TLM supported
• Voltage output (VBAT)
• NO output BEC
• Supports oneshot / Multishot / Dshot PWM
• Supports damped light
• Supports 3-6S lipo input
• Ext. cap needed for 6s (1000uf 35v for 6s usage.)
• Mounting holes: 20x20mm(M3)
• Size:30 x 39 mm
• Weight: 7.2g

In the box

• Holybro Tekko32 F4 4in1 mini 45A ESC *1
• M2 Anti-Vibration Silicone Grommet Insert *4
• Electrolytic capacito: 1000uF 35v *1
• 8pin to 8pin 1mm pitch 65mm cable *1
• 8pin to 8pin 1mm pitch 25mm cable *1

Downloads:

Some Tips:

• ESC Current Sensor Scale
• BLHeli_32 ESC Firmware Overview
