Matek MBEC6S Micro BEC – 6–30V to 5V/9V 1.5A (3 Pack)

The Matek MBEC6S Micro BEC (3 Pack) provides a compact way to power compatible FPV accessories. Each module reduces a 6–30V DC input to a regulated 5V or 9V output.

Use it to add a separate power supply for equipment such as cameras and receivers, where their voltage and current requirements match the module. Each board weighs just 1g, making it easy to fit into builds with limited space.

Product Highlights

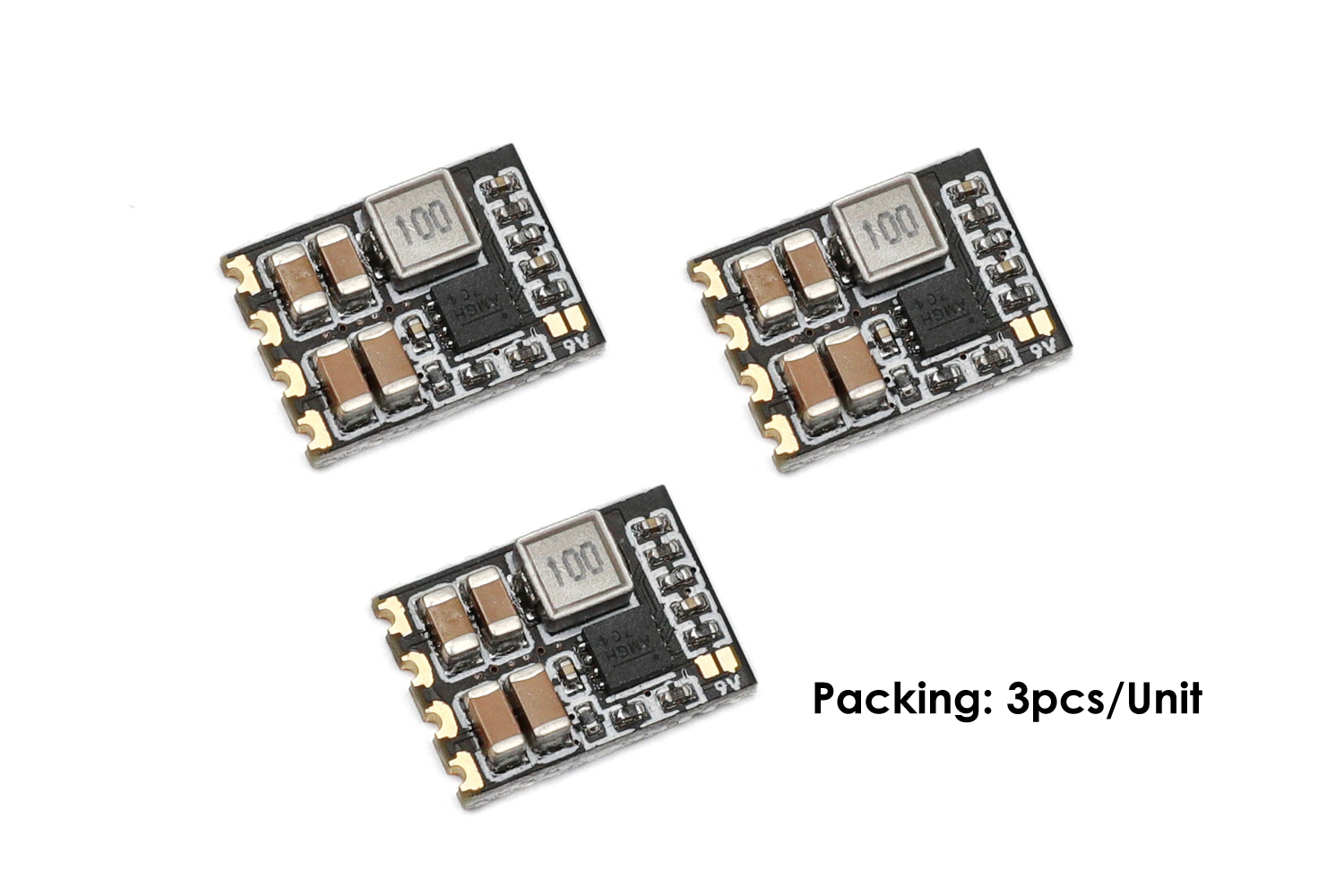

• Three modules included: Supplied together in one bag.

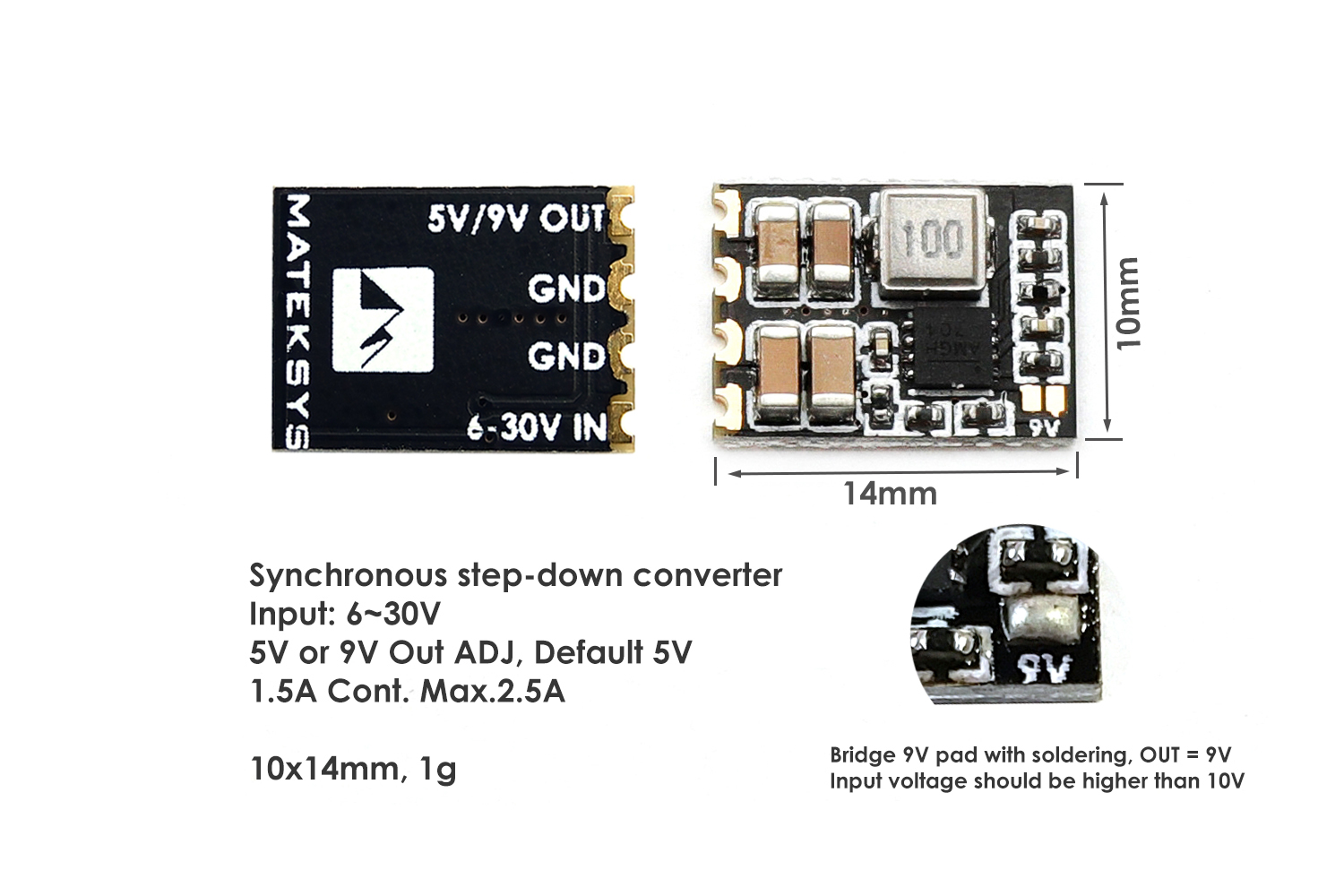

• Flexible output: Configure each module for 5V or 9V.
• Efficient regulation: Synchronous step-down design.

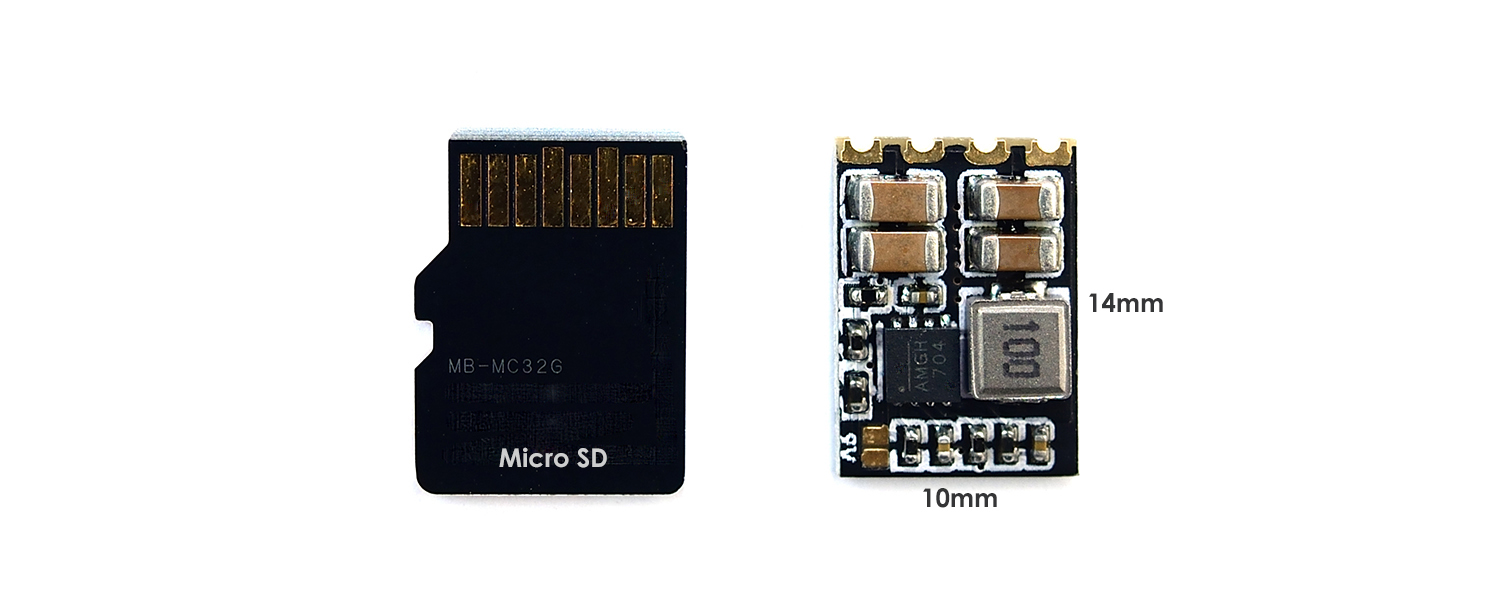

• Compact and lightweight: Each board measures 10×14×3mm and weighs 1g.
• Built-in protection: Overcurrent protection and thermal shutdown.

Product Information

• Brand: Matek Systems
• Model: MBEC6S
• Regulator type: Synchronous step-down BEC
• Input voltage: 6–30V DC
• Output voltage: 5V or 9V
• Continuous output current: 1.5A per module
• Maximum output current: 2.5A for up to 5 seconds per minute
• Pin spacing: 2.54mm
• Dimensions: 10×14×3mm per module
• Weight: 1g per module
• Pack quantity: 3 modules

Compatibility: Check your equipment’s voltage and current requirements before connecting. This BEC reduces voltage; it cannot boost a lower input voltage to 9V. The 5V and 9V settings are alternatives, not simultaneous outputs.

In the Box

• 3 × Matek MBEC6S Micro BEC modules
